How to Choose the Right Belt Drive Gearbox for Your Needs?

Choosing the right Belt Drive Gearbox can be a daunting task. Each application has its unique needs. Industry expert, John Smith, emphasizes, “A Belt Drive Gearbox must match your specific requirements for optimal performance.”

When selecting a gearbox, consider key factors like torque, speed, and power. These elements will determine the efficiency of your machinery. It's crucial to understand how each characteristic affects your system. A mismatched gearbox can lead to inefficiencies or even equipment failure.

Understanding your operational environment is equally important. Temperature, load conditions, and space restrictions all play a significant role in your selection. Think about these details carefully. Reflect on previous experiences; how did your choices impact performance? It's a learning process. In the end, choosing the right Belt Drive Gearbox requires both knowledge and introspection.

Table of Contents [Hide]

1 Understanding Different Types of Belt Drive Gearboxes and Their Applications

2 Key Factors to Consider When Selecting a Belt Drive Gearbox

3 Evaluating Load Capacity and Torque Requirements for Your Gearbox

4 Common Material Choices and Their Impact on Gearbox Performance

5 Cost Analysis: Budgeting for Your Belt Drive Gearbox Selection

Understanding Different Types of Belt Drive Gearboxes and Their Applications

When selecting the right belt drive gearbox, understanding the different types available is crucial. Belt drive gearboxes come in various designs, each suited for specific applications. For instance, synchronizing belt gearboxes are ideal for high-speed operations. They offer precise control and minimal slippage, making them popular in manufacturing.

V-belt gearboxes, on the other hand, are widely used in industrial applications for their robustness. They can easily handle heavy loads and provide reliable performance. The choice between these options largely depends on your specific needs. Consider the torque requirements, speed, and environment of use.

**Tips:** Always assess your application criteria before choosing a gearbox. Examine the working conditions closely. Remember, cost is not the only factor; the right fit matters too. Don't hesitate to revisit your choices if something feels off. It's important to ensure that the gearbox aligns with your operational goals effectively.

How to Choose the Right Belt Drive Gearbox for Your Needs?

Gearbox Type	Efficiency	Load Capacity (Nm)	Applications	Typical RPM
Standard Belt Drive	85%	50 - 150 Nm	Industrial Machinery	100 - 3000 RPM
Heavy-Duty Belt Drive	90%	150 - 500 Nm	Construction Equipment	50 - 2000 RPM
High-Speed Belt Drive	88%	30 - 100 Nm	Textile Machinery	1000 - 5000 RPM
Variable Speed Belt Drive	87%	75 - 200 Nm	Food Processing	200 - 3000 RPM

Key Factors to Consider When Selecting a Belt Drive Gearbox

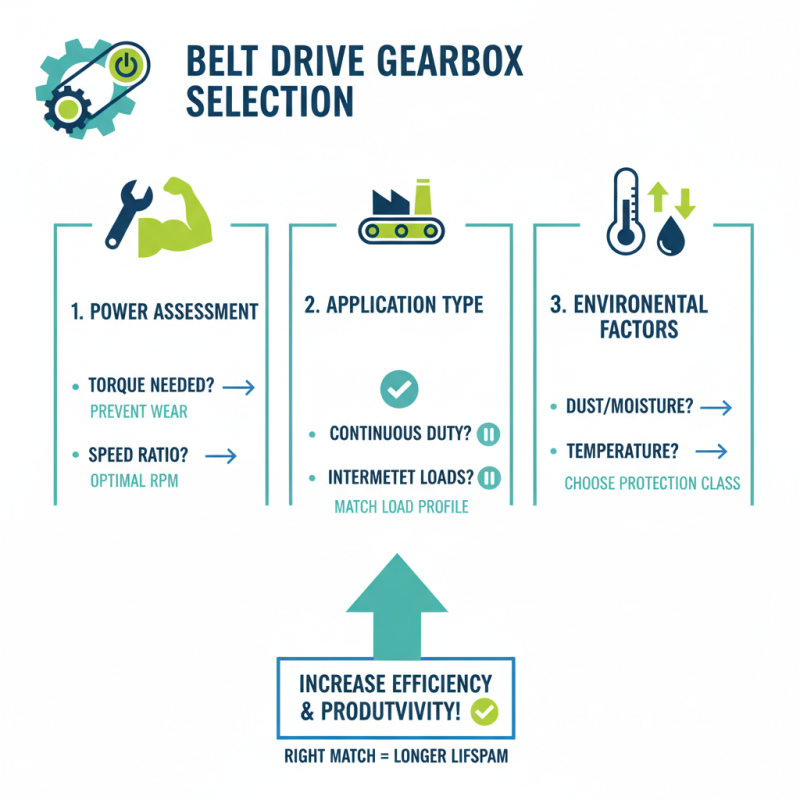

Selecting the right belt drive gearbox is crucial for efficiency and productivity. Start by assessing your power requirements. Understand the torque needed for your application. A mismatch can lead to underperformance or excess wear.

Consider the operating environment. Temperature variations and exposure to dust can impact performance. Is the gearbox protected well? Look for seals that prevent contaminants. Noise levels should also be evaluated. While some noise is expected, excessive sounds may indicate issues.

Don't overlook the mounting options. Ensure the design fits your space constraints. Measure carefully, as a poor fit could lead to operational challenges. The gearbox's construction material matters, too. Plastic may suit light loads, but metal is better for heavy-duty tasks. Always test before finalizing a choice. A trial can reveal unexpected drawbacks or inefficiencies in your setup.

Evaluating Load Capacity and Torque Requirements for Your Gearbox

When selecting a belt drive gearbox, evaluating load capacity and torque requirements is crucial. Start by assessing the load your application will experience. This includes both static and dynamic loads. An overwhelming load can lead to failure or inefficiency. Many users underestimate this aspect, resulting in subpar performance.

Next, consider torque requirements. Torque is the twisting force needed to turn the gearbox. A mismatch can cause overheating or reduced lifespan. Calculate your system's torque needs based on the load and speed. Don't ignore small details, like friction in the system. They can significantly affect your calculations.

Be mindful of your choices, as they reflect in performance. Having too much or too little capacity might seem minor, but it can lead to issues. It's necessary to think through every aspect thoroughly. An over-engineered solution wastes resources, while under-engineering can cause real problems. Reflect on these factors for a balanced decision.

Common Material Choices and Their Impact on Gearbox Performance

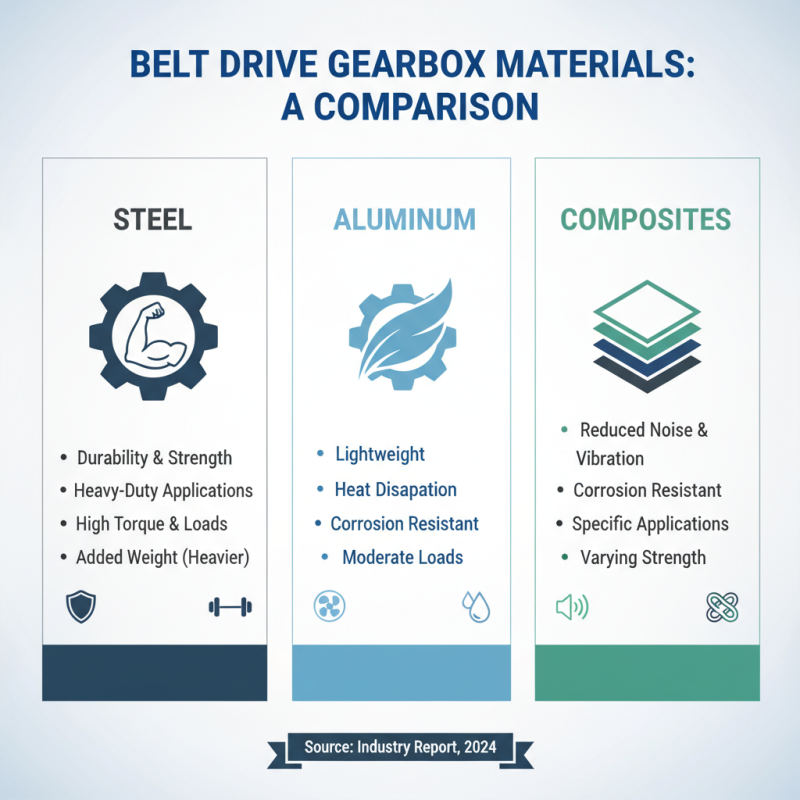

When selecting a belt drive gearbox, material choice significantly influences performance. Common materials include steel, aluminum, and some composite options. According to a recent industry report, steel gearboxes are known for durability and strength. They are ideal for heavy-duty applications. Steel can handle high torque and heavy loads, but it also adds weight.

Aluminum is another popular choice. It is lighter and offers good strength-to-weight ratio. However, it may not perform as well under extreme loads. Composites are emerging as innovative alternatives. They provide unique benefits like reduced weight and corrosion resistance. However, their long-term performance under stress is still being studied.

Each material comes with pros and cons. A study indicated that about 40% of mechanical failures in gearboxes stem from material inadequacy. This calls for careful consideration. Sometimes, the pursuit of a lighter gearbox leads to unexpected failures. High-performance applications often require balancing durability with weight. Therefore, understanding material impacts is essential in choosing the right gearbox.

Cost Analysis: Budgeting for Your Belt Drive Gearbox Selection

When budgeting for a belt drive gearbox, you need to consider several factors. The upfront cost is just one element. Installation and maintenance fees can quickly add up. It's vital to have a comprehensive understanding of your budget constraints. Make sure you include all potential expenses.

Tips: Research common issues that arise with belt drive systems. This will help you avoid unexpected costs later. Aim for systems known for durability. Sometimes, a low upfront cost leads to high maintenance expenses.

Look into the long-term savings a more expensive gearbox can provide. Lower operational costs could balance out the initial price. These considerations require careful analysis.

Tips: Calculate the total lifecycle cost of the gearbox. Assess your operational needs. Adjust your budget if necessary. This will help minimize financial surprises down the road. A well-planned budget can significantly impact your project’s success.
