ELPEX B Highly Flexible Coupling
Flexible and adaptable
Highly flexible ELPEX-B® couplings transmit torques without circumferential backlash in machines with non-uniform torque characteristics. They are resistant to wear and maintenance-free. The hubs of the ELPEX-B couplings are made of high-quality cast iron or steel. The torque is transmitted by a flexible tire reinforced with a cord ply.
Benefits
Compensation of very large shaft misalignments
Independent of direction of rotation (suitable for reversing operation)
The rubber tire can be replaced easily without the need to move the coupled machines
Easy mounting on the shafts is possible with taper bushes
Application
The ELPEX-B coupling is available as a catalog standard in 15 sizes with a rated torque of between 57 Nm and 19000 Nm. The coupling can be fitted with elastic tires made of natural rubber for ambient temperatures of -50 °C to +55 °C and with elastic tires made of chloroprene rubber for -15 °C to +70 °C.
The chloroprene rubber tire is marked FRAS, "Fire-resistant and Antistatic".
Made in Germany, worldwide in use
Mining and Cement: crushers
Steel Production: shears, straightening machines, reversing rolling mills, pilger rolling mills
Power Generation: air condensers
Chemicals and Pharmaceuticals: driers, lauter tuns, mixers, agitators, reactors
Pulp and Paper: wastewater purification plants
Food and beverage: lauter tuns, reactors, agitators
Sugar: diffusers, sugar cane mills

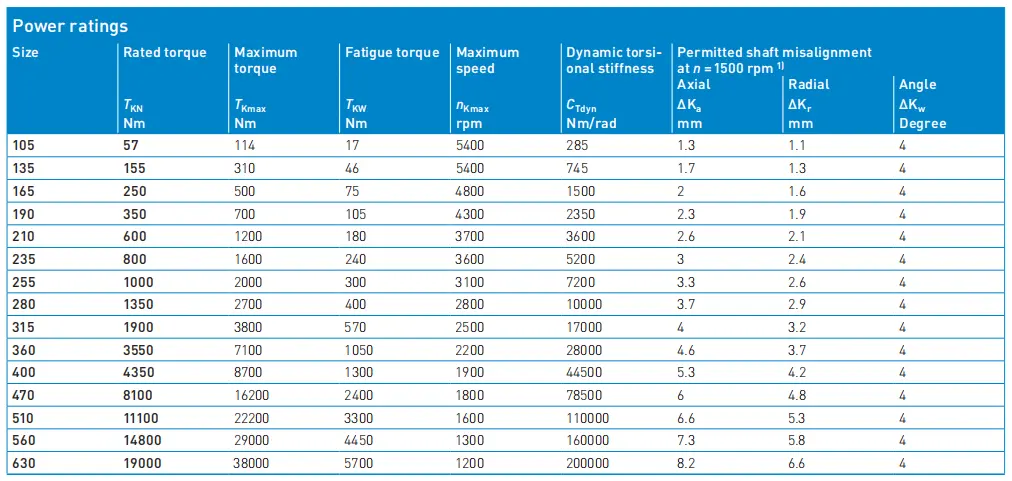

Technical specifications
