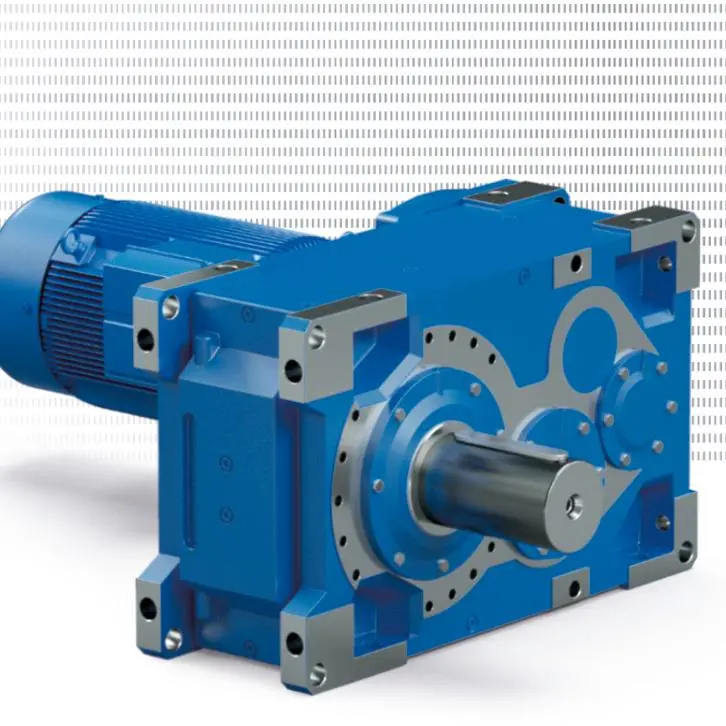

MAXXDRIVE® Parallel Gear Unit Gearbox

Sizes:11

Mounting position:M1, M2, M3, M4, M5, M6

Ratio:5.6:1 - 30,000:1

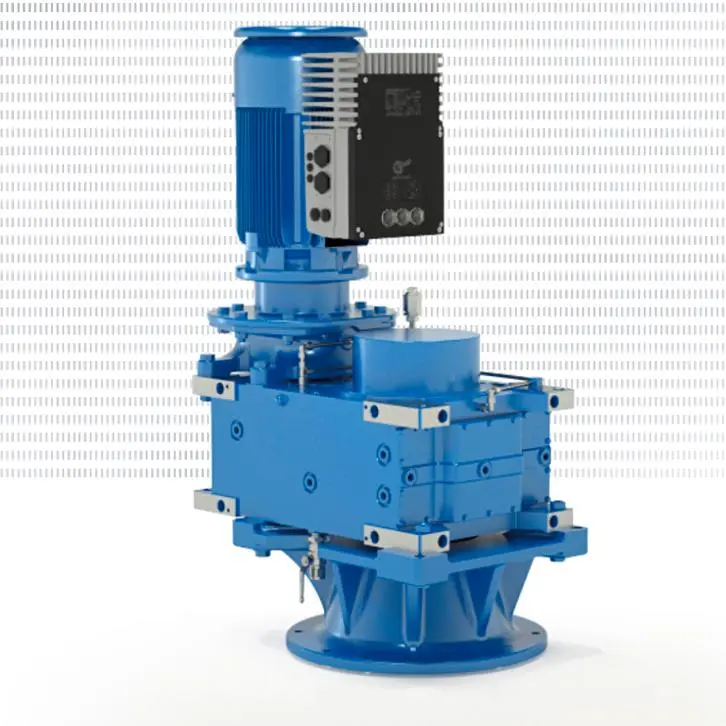

The parallel gear version of the MAXXDRIVE® industrial gear unit is manufactured according to the proven UNICASE housing principle and is available in all sizes. Because of this design, mixer drives can often be implemented without additional bearings. Large roller bearings and centre distances increase the load capacity and service life of the individual components. Effective cooling systems reduce temperatures and extend the life of lubricants. We offer short planning and delivery times. This is possible due to the extensive knowledge of our experts about the specific requirements for every application, as well as optimised stocking of components.

Various output shaft bearings for optimum adaptation to the application

Many output flange options

Wide range of possible motor attachments

Effective cooling options available

Supply of ready-to-install complete systems with coupling, brakes, monitoring, etc. is possible

Optimum sealing protects against lubricant leakage

Low noise operation reduces noise nuisance

High torque capacity

Increased lubricant life minimises maintenance costs

Symmetrical design

Mirror-image and inclined installation possible

Optimal integration into the customer application through six possible installation positions

Same housing size and installation dimensions for all speed ratios (two- and three-stage)

Input and output shafts can be adapted to customers' dimensions

Great reliability

Long service life

High precision
