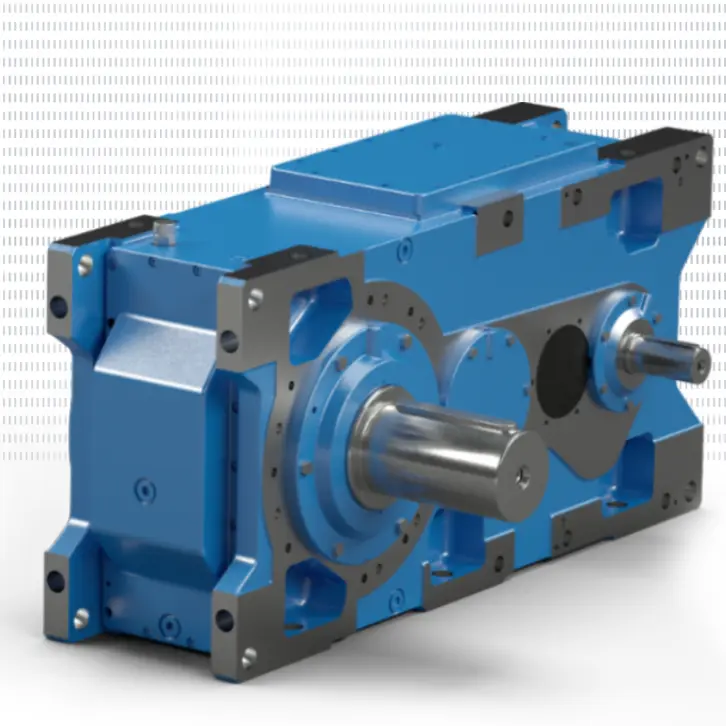

NEW MAXXDRIVE® XD Parallel Gear Unit

Sizes:5

Ratio:22.4:1 - 355:1

The MAXXDRIVE® XD industrial gear unit is available as a three- and four-stage helical gear unit. The housing design succeeds follows the proven UNICASE housing principle and has been specially optimised for external loads. Due to the elongated arrangement of gear stages, the housing has a large centre distance, enabling a U-shaped drive design. Especially with lifting gear drives, the cable drum and the motor can thus easily be arranged on the same side of the gearbox. Furthermore, the housings are equipped with an inspection cover as standard.

Many options are adopted from our tried and tested modular industrial gear unit series, so that delivery times are similar to those for our standard MAXXDRIVE® industrial gear units. We offer short planning and delivery times. This is made possible through our experts' extensive knowledeg of the specific requirements for every application, as well as optimised stocking of components.

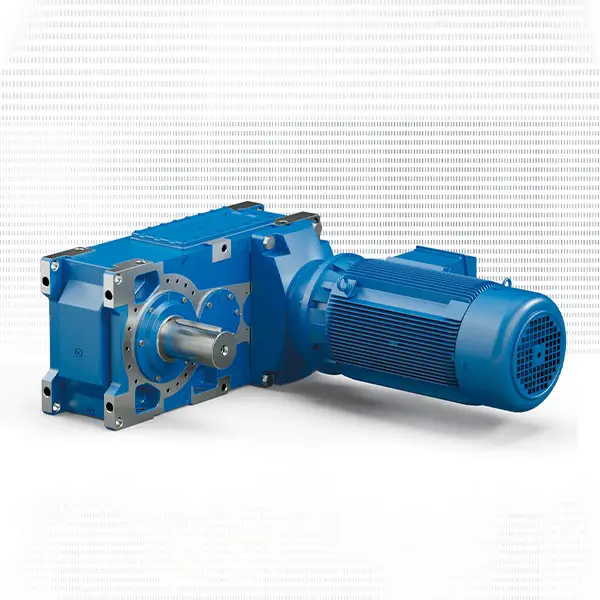

Input design: IEC/NEMA motor adapter or free input shaft

Foot-mounting or bolt-on mounting (with torque arm)

Various output shafts available: Solid shaft, hollow shaft (key/shrink disc), DIN5480

Second input shaft optionally available

Brake attachment via input flange or brake console

Output coupling (drum coupling) available

Optimised housing for external loads

Extended centre distance

Input and output shafts can be adapted to customers' dimensions

Inspection cover

Great reliability

Long service life

Identical installation dimensions (3- and 4-stage)

High precision
